In Stock

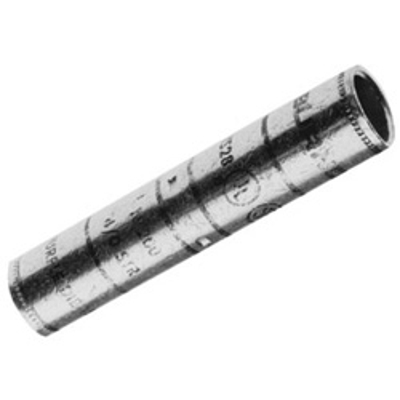

Burndy YS29, 250 MCM Copper Compression Butt Splice, Long Barrel
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YS29 -- Hylink Compression Butt Splice, 250 MCM, 250 (61) Navy, 3.58 Inches Splice Length, 1-11/16 Inch Strip Length, Chamfered Long Barrel
Description:
Burndy Type YS Compression Butt Splice connectors are suitable for heavy-duty applications operating between 600 Volt - 35 Kilo-Volts. Connector color-coded, aids for easy identification. Splice connector has chamfered barrel and withstands temperature rating of 90 °C.
Color Code:
Yellow
Standards:
RoHS Compliance
CSA Certified
UL468A-468B
Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000
Operating Temperature: 90 °C
Specifications:
Size: 250 MCM, 250 (61) Navy
Material: Copper
Plating Type: Electro Tin Plated
Splice Length: 3.58 inches
Strip Length: 1-11/16 inches
Spec Sheet
Stocked | Yes |
---|---|
Barrel Size | Long |
