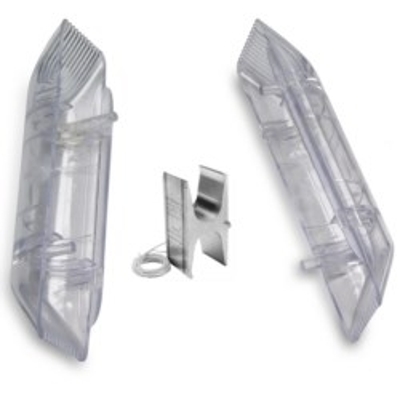

Burndy YH6C6CWCC, Cu Compression H-Tap, 6-10 Main, 6-14 Tap, With Clear Cover

Burndy YH6C6CWCC, Copper Compression H-Tap, 6-10 AWG Code and Flex Main, 6-14 AWG Code and Flex Tap, With Flame Retardant Clear Cover

Description
Accommodates a wide range of run/tap copper cable combinations, tap grooves function independently, use of one tap required but balance may be left empty, color coded to match installation die color, die index embossment for permanent inspectability, third hand constrains conductors while installer completes crimp, flame retardant Clear cover meets oxygen index 28 and UL94 V-O requirements.


Color Code:
Orange

Voltage Rating:
600-35kV Volts

H-Tap Material:
Copper

Conductor(s)
Main                                                       6 AWG-10 AWG
Tap                                                         6 AWG-14 AWG


Standards
UL Listed
UL94
CSA Certified
RoHS Compliant

Spec Sheet

View Burndy Spec Sheet for Complete Details
