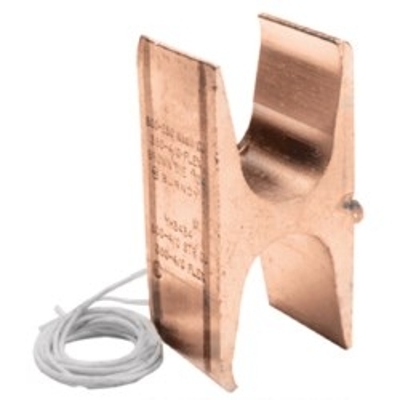

Burndy YH292C, CRIMPIT H-Tap, 250 MCM-2 AWG (Main), 1-1/16 Inch Strip Length

Burndy YH292C, Copper Compression H-Tap, 250 MCM-2AWG (Main/Run), 2-6 AWG (Tap 1), 8-14 AWG (Tap 2)

Description
Used to accommodate a wide range of run/tap copper cable combinations, including both Flexible and Code combinations, with tap grooves that function independently, use of one tap required but balance may be left empty, color coded to match installation die color, die index embossment for permanent inspectability, third hand constrains conductors while installer completes crimp.

Strip Length:
1-1/16 Inch

Voltage Rating:
600-35kV Volts

C-Tap Material:
Copper

Color Code:
Purple

Conductor(s)
Main/Run                                                250 MCM-2 AWG
Tap 1                                                       2-6 AWG
Tap 2                                                       8-14 AWG


Standards
UL Listed
UL467
CSA Certified
RoHS Compliant

Spec Sheet

View Burndy Spec Sheet for Complete Details
