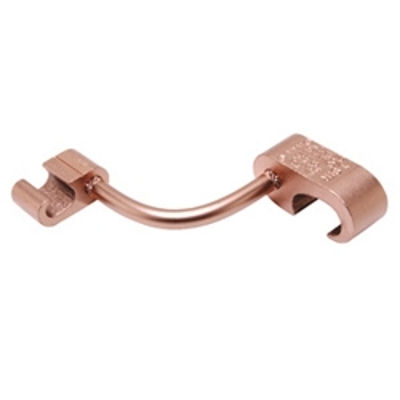

Burndy YGL34C29, Cross Grid Connector, 250 - 500 MCM, 5/8 In - 3/4 Ground Rod, 5-6 AWG Rebar, Direct Burial

Burndy YGL34C29, Copper Compression Cross Grid Connector, 250 - 500 MCM, 5/8 In - 3/4 In Rod, 5-6 AWG Rebar, 2 AWG Stranded - 250 MCM (Side B), Direct Burial

Description
An irreversable compression ground grid cross connector which allows adjustment of the compression elements prior to installation. Only six connectors and four dies are required to install all combinations from #6 solid through 500 MCM. UL467 Listed. Acceptable for direct burial in earth and concrete. Prefilled with PENETROX® compound and strip sealed.

Material:
Copper

Conductor(s)
Rod Size (Side A) - Range                     5/8 in-3/4 in
Rod Size (Side B) - Range                     N/A
Rebar Size (Side B) - Range                  N/A
Copper Solid Size (Side A) - Range       N/A
Copper Str Size(Side B) - Range            2 AWG - 250 MCM
Copper Str Size (Side A) - Range           250 MCM - 500 MCM
Copper Solid Size (Side B) - Range       N/A
Rebar Size (Side A) - Range                  5 - 6


Standards
UL Listed
CSA Certified
RoHS Compliant
Direct Burial
UL467,IEEE 837

Spec Sheet

View Burndy Spec Sheet for Complete Details
