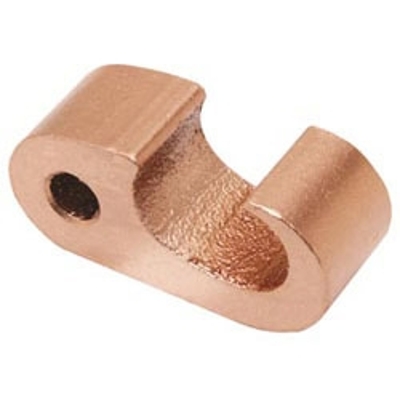

Burndy YGHP34C26, Ground Rod Connector, 250-500 MCM (Run), 1/0-2/0 AWG (Tap), Direct Burial

Burndy YGHP34C26, Copper Compression Ground Rod Connector, 250 MCM Stranded - 500 MCM (Run), 5/8"- 3/4" Rod (Run), 1/0 AWG Stranded - 2/0 AWG Stranded (Tap), Direct Burial

Description
Irreversible compression ground tap figure 6 can be used as a tap connector or as a tap splice connector. Four die sets and eight connectors can accommodate a conductor range from 8 AWG solid through 500 MCM plus 1/2", 5/8", and 3/4" copper bonded ground rods. UL467 Listed. Acceptable for direct burial in earth and concrete. Prefilled with PENETROX® compound and strip sealed.

Material:
Copper

Conductor(s)
Copper Tap Range                                  1/0 AWG-2/0 AWG
Copper Stranded Run (Range)               250 MCM-500 MCM

Standards
UL Listed
CSA Certified
RoHS Compliant
Direct Burial
UL467,IEEE 837

Spec Sheet

View Burndy Spec Sheet for Complete Details
