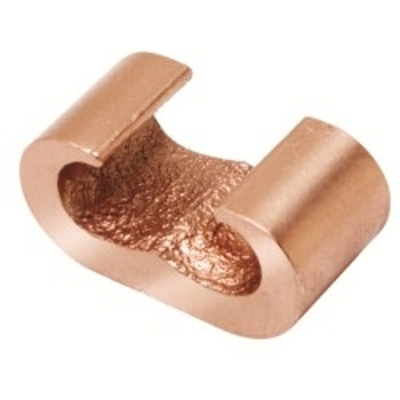

Burndy YGHC26C26, Cu Compression C Tap, 1-2/0 AWG Run, 1-2/0 AWG Tap, Direct Burial

Burndy YGHC26C26, Cu Compression C Tap, 1-2/0 AWG Str (Run), 3/8 Inch Rod (Run), 1-2/0 AWG Str (Tap) Direct Burial

Description
Irreversible compression ground tap figure "C" connectors. Accomodates all cable combinations from #6 solid through 500 kcmil. "C"- shaped opening permits placing two continuous parallel cables into conductor groove. UL 467 Listed. Acceptable for direct burial in earth or concrete. Prefilled with PENETROX® compound and strip sealed.

Material:
Copper

Conductor(s)
Copper Tap Range                                  1 AWG-2/0 AWG
Copper Stranded Run (Range)               1 AWG-2/0 AWG
Rod Size Run (Range)                            3/8 Inch

Standards
UL Listed
CSA Certified
RoHS Compliant
UL468A-468B,UL467,IEEE 837

Spec Sheet

View Burndy Spec Sheet for Complete Details
