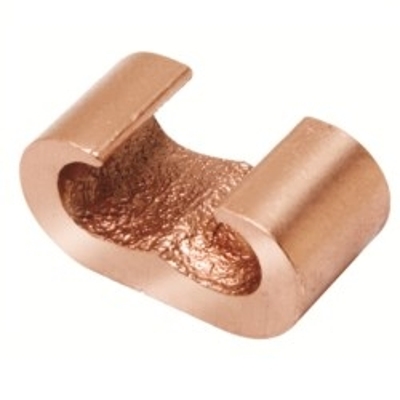

Burndy YGHC26C2, Cu Compression C Tap, 1-2/0 AWG Run, 6-2 AWG Tap, Direct Burial

Burndy YGHC26C2, Cu Compression C Tap, 1-2/0 AWG (Str), 3/8 Inch Rod (Run), 6-2 AWG (Tap) Direct Burial

Description
Irreversible compression ground tap figure "C" connectors. Accomodates all cable combinations from #6 solid through 500 kcmil. "C"- shaped opening permits placing two continuous parallel cables into conductor groove. UL 467 Listed. Acceptable for direct burial in earth or concrete. Prefilled with PENETROX® compound and strip sealed.

Material:
Copper

Conductor(s)
Copper Tap Range                                  7 AWG-2 AWG
Copper Stranded Run (Range)               1 AWG-2/0 AWG
Rod Size Run (Range)                            3/8 Inch
Copper Solid Tap (Range)                       6 AWG-1 AWG

Standards
UL Listed
CSA Certified
RoHS Compliant
UL468A-468B,UL467,IEEE 837

Spec Sheet

View Burndy Spec Sheet for Complete Details
