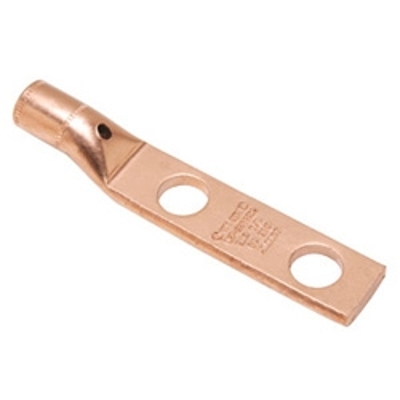

Burndy YGHA342N, 500 MCM, 1/2 Stud, Two Hole, Heavy Duty, Short Barrel Lug, Direct Burial

Burndy YGHA342N, Copper Compression Lug, 500 MCM, 1/2 Inch Stud, 1 3/4 Inch Center, Two Hole, Long Barrel Lug w/ Inspection Hole, Direct Burial


Application:
For Grounding Applications And Direct Burial In Earth Or Concrete


Features:
• Heavy Duty Irreversible Compression HYLUG Terminals Designed to Carry Short Circuit Load, and High Mechanical Stress
• Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion
• UL 467 Listed, Acceptable For Direct Burial In Earth Or Concrete
• UL486A Listed, Prefilled With Penetrox Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps)


Stud Size:
1/2

Voltage Rating:
600-35kV Volts

Lug Material:
Copper

Wire Size
500 MCM Stranded

Standards
UL Listed, UL467, UL468A-468B, IEEE 837
CSA Certified
RoHS Compliant
Direct Burial

View Burndy Spec Sheet for Complete Details
