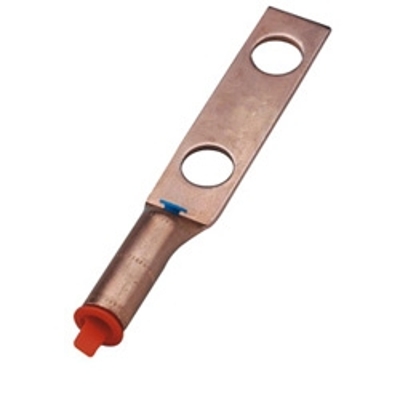

Burndy YGA262N, 2/0 AWG, 1/2 Stud, Two Hole, Long Barrel Lug, Direct Burial

Burndy YGA262N, 2/0 AWG, 1/2 Inch Stud, 1 3/4 Inch Center, Two Hole, Long Barrel Lug w/ Inspection Hole, Direct Burial


Application:
For Grounding Applications And Direct Burial In Earth Or Concrete


Features:
• Irreversible Compression HYLUG Ground Terminal Specifically Designed For Grounding Applications
• Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion
• UL 467 Listed, Acceptable For Direct Burial In Earth Or Concrete
• UL486A Listed, Prefilled With Penetrox Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps)


Stud Size:
1/2

Color Code:
Black

Voltage Rating:
600-35kV Volts

Lug Material:
Copper

Wire Size
2/0 AWG Str

Standards
UL Listed
CSA Certified
RoHS Compliant
Direct Burial

View Burndy Spec Sheet for Complete Details
