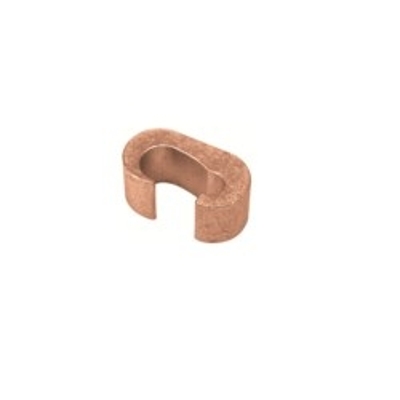

Burndy YCHC34TC2, Cu Compression C Tap, Main 500 MCM-4/0 Code, 350 MCM-4/0 Flex, Two Taps

Burndy YCHC34TC2, Cu Compression C Tap, 500 MCM -4/0 AWG Code (Main), 350 MCM- 4/0 Flex (Main), 2-6 Str/Sol Code, 2-8 Flex (Tap 1), 8-14 AWG Code and Flex (Tap 2)

Description
Type YCHC C-TAP COPPER CRIMPIT connectors have a wide range of run/tap combinations including Class B code I and locomotive flexible conductor combinations. All (B/B, B/I, I/I) combinations are recommended. Each connector accommodates many cable combinations, allowing maximum flexibility for the design and installation of a system.

Strip Length:
1 Inch

Voltage Rating:
600-35kV Volts

Material:
Copper

Color Code:
Brown


Conductor(s)
Copper Tap Range                                  N/A
Copper Stranded Run (Range)               N/A
Copper Solid Tap (Range)                       6 AWG-2 AWG
Copper Solid Run Size (Range)              N/A

Standards
UL Listed
CSA Certified
RoHS Compliant

Spec Sheet

View Burndy Spec Sheet for Complete Details
