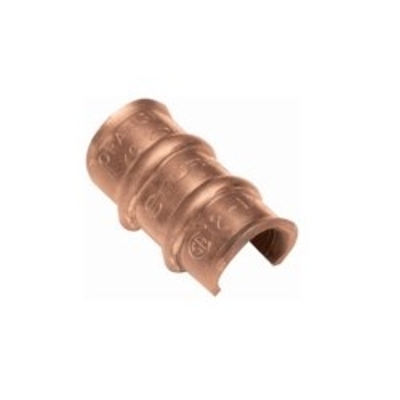

Burndy YC2L12, Thin C-Tap, 4 AWG (Run), 4 AWG (Tap) 1-3/16 Inch Strip Length

Burndy YC2L12, Copper Compression Thin Wall C-Tap, 4 AWG (Run), 4 AWG (Tap) 1-3/16 Inch Strip Length

Description
Type YC-L is a thin-wall high conductivity copper connector for making copper tap and parallel connections. Burndy Type YC-L thin wall C-tap compression connector provides low resistance and excellent electrical conductivity with a Voltage Rating of 600 Volts.

Strip Length:
1-3/16 Inch

Voltage Rating:
600-35kV Volts

C-Tap Material:
Copper

Color Code:
Pink

Conductor(s)
Copper Tap Range                                  12 AWG-4 AWG
Copper Stranded Run (Range)                4 AWG-2 AWG
Copper Solid Tap (Range)                       N/A
Copper Solid Run Size (Range)              N/A

Standards
UL Listed
UL467
CSA Certified
RoHS Compliant

Spec Sheet

View Burndy Spec Sheet for Complete Details
