In Stock

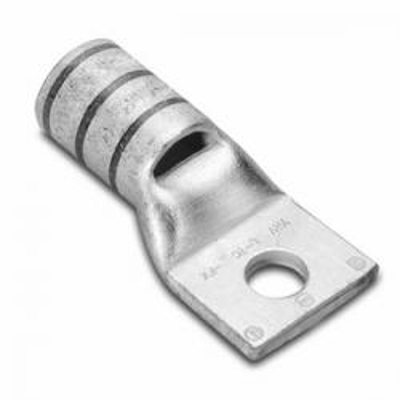

Burndy YAV4CLTC10FX, 4 AWG, #10 One Hole Short Barrel Lug
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YAV4CLTC10FX, 4 AWG, #10 One Hole Short Barrel Lug w/ Inspection Window
Description
Hylug Copper Tubing Compression Lug, 1 Hole With Inspection Window, 0.20 Inch Bolt Hole Size, #10 Stud, Electro-Tin Plated, Standard Barrel
Hole Size:
#10
Voltage Rating:
600-35kV Volts
Lug Material:
Copper
Color Code:
Gray
Wire Size
Flexible (Class G,H,I) 4 AWG Wire, 4 AWG Copper Solid, 4 AWG Copper Stranded, 4 AWG DLO.
Standards
UL Listed
CSA Certified
RoHS Compliant
Spec Sheet
| Stocked | Yes |
|---|---|
| Lug Size | 4 AWG |
| Barrel Size | Short |
| Number of Holes | 1 |
| Stud Hole Size | #10 |
