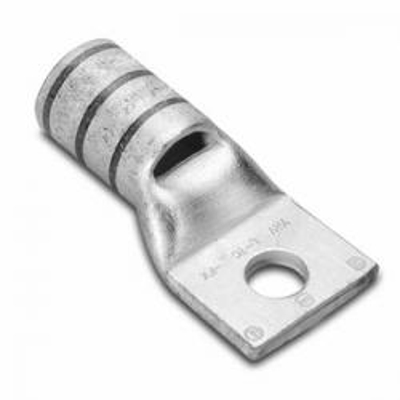

Burndy YAV26LTC14FX, 2/0 AWG, 1/4 inch One Hole Short Barrel Lug
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YAV26LTC14FX, 2/0 AWG, 1/4 inch One Hole Short Barrel Lug w/ Inspection Window
Description
Hylug Copper Tubing Compression Lug, 1 Hole With Inspection Window, 0.27 Inch Bolt Hole Size, 1/4 Inch Stud, Electro-Tin Plated, Standard Barrel
Hole Size:
1/4 Inch
Voltage Rating:
600-35kV Volts
Lug Material:
Copper
Color Code:
Black
Wire Size
Flexible (Class G,H,I), 2/0 AWG Wire, 2/0 AWG Copper Solid, 2/0 AWG Copper Stranded, 2/0 AWG DLO.
Standards
UL Listed
CSA Certified
RoHS Compliant
Spec Sheet
| Stocked | Yes |
|---|---|
| Wire Size | 2/0 AWG |
| Lug Size | 2/0 AWG |
| Barrel Size | Short |
| Number of Holes | 1 |
| Stud Hole Size | 1/4 in. |
