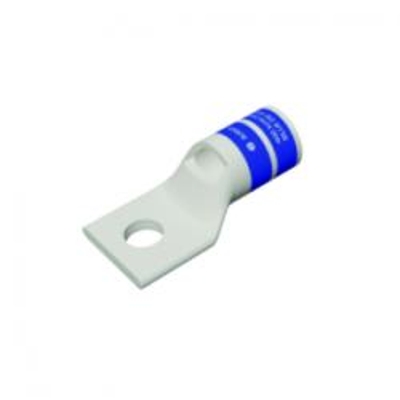

BurndyYA6CL90, 6 AWG, 1/4 Inch Stud, One Hole, 90 Degree, Short Barrel Lug

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Burndy YA6CL90, 6 AWG, 1/4 inch, One Hole, 90 Degree, Short Barrel Lug

SKU
YA6CL90

Product Details

Learn everything you want to know about this product to make an informed purchase

Burndy YA6CL90, 6 AWG, 1/4 Inch stud, One Hole, 90 Degree, Short Barrel Lug w/ Inspection Window


Description
BURNDY's HYLUG(tm) terminals, types YA, YA-TC, YA-L, YA-L-TC, YA-2N, YA-2TC, YA-LTC-FX, YA-L-2TC, and YA-2LN are designed for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications.


 Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness to provide maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
• Barrel diameter closely matches commercial (code) cable and Navy cable diameters to provide an excellent relationship of the conductor/connector combination to produce a high quality electrical connection with the recommended tooling
• Electro-tin plated and electro-lead plated (Burndys proprietary brite finish) to provide durable long-lasting corrosion resistance
• Internally beveled barrel end to provide easy cable insertion
• Each connector is clearly marked with the wire size and type, die index, and color coding to provide easy identification and proper tooling recommendation

• Marked with the proper number and location of crimps to lower installed costs and provide for proper installations
• Proper compression systems forms a homogeneous mass and results in an excellent electrical connection
• Use up to 35 kV as indicated (Suitable for high voltage applications)
• Expanded wire ranges when using Y644 HYPRESS(tm) Dieless 1 Crimp provides ability to complete emergency repairs when connector and wire size do not match
• Crimp areas clearly marked to provide correct number and location of crimps for proper installation
• Hydraulic and Battery tooling crimp embossment to provide permanent die index number embossment on completed crimp for inspection purposes

Stud Size:
1/4 Inch

Voltage Rating:
600-35kV Volts

Lug Material:
Copper

Color Code:
Blue

Wire Size
6 AWG

Standards
UL Listed
CSA Certified
RoHS Compliant


Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet for Complete Details

More Information
Wire Size6 AWG
Lug Size6 AWG
Barrel SizeShort
Number of Holes1
