Burndy HSC14FRFT - Fire Retardant Clear Heat Shrink Tubing, #12 - #8 Code, #12 - #10 Flex

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

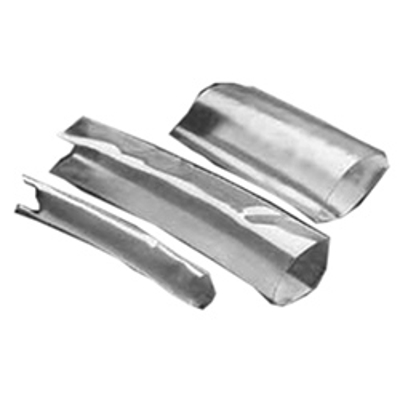

Burndy HSC14FRFT - Fire Retardant Heat Shrink Tubing, Clear PVC, 1/4 Inch, 2 to 1 Shrink Ratio

SKU
CPVCHSC14FR-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Burndy HSC14FR - Fire Retardant Clear Heat Shrink Tubing, #12 - #8 Code, #12 - #10 Flex

Description
Type HSC-FR is a flexible polyvinyl chloride clear heat-shrink tubing. Excellent flame retardant properties and a 2:1 shrink ratio, the VISI-SHRINK tubing enables inspectors to read die index embossments on installed connectors easily. UL recognized, 105° C, 600V, the operating temperature from –20° C to 105° C with a shrink temperature of 135° C.

Flex Wire Range:  12 AWG - 10 AWG
Code Wire Range:  12 AWG - 8 AWG
Voltage Rating:  600V
Wall Thickness:  0.025 Inch
Diameter Before Shrink:  0.250 Inch
Diameter After Shrink:  0.125 Inch
Color:  Clear

Features and Benefits:
• UL 224, VW-1 Rated
• Low Shrink Temperature.
• Self-extinguishing flame retardant properties.
• Clear Tubing Allows inspection of die index embossed and shiner after installation is complete.
• Should any corrosion occur it will be visible during inspection.
• Only requires common hot air guns to apply.
• Meets MIL-M-23053/Z-206C

Standards
• UL Recognized
• CSA Certified
• RoHS Compliant

Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet

More Information
Stud Hole Size1/4 in.
