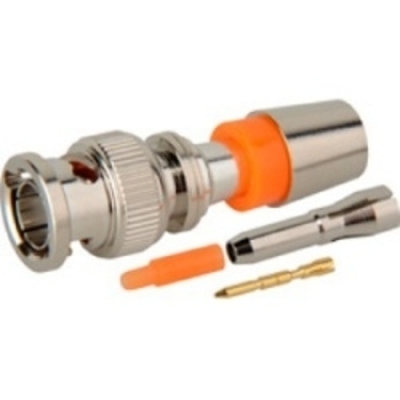

Belden FSBNC1RGB, Mini BNC Coax Compression Connector, Orange

SKU FSBNC1RGB

dollar

$103.40
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

FS Series Mini BNC Compression Connectors, 25 Pack

FS Series Mini (24-26 AWG) multi-piece BNC connector fits most stranded center conductor coaxial cables. Split ferrule design provides proper fit to mini coax cables with sliding pin to elimiate blind entry.

Specifications:
   Cable Type:  RG1
   Conductor Size: 24-26 AWG
   Color Band:  Orange
   Type:  75 Ohm

Temperature Range:
  -40°F (-40°C) to 140°F (60°C)

Mechanical Characteristics:
  Termination Type:  Compression
  Cable Center Conductor Diameter Limits:  .015 - .025 inch
  Cable Dielectric Diameter Limits:  .065 - .078 inch
  Cable Outer Jacket Diameter Limits:  .095 - .110 inch
  Cable Insertion Force:   20 lbs. Maximum



Belden 1694A Spec SheetView Spec Sheet for Complete Details
