Belden 9967 22/3C Overall Braid Shield Communication and Instrumentation Cable, MIL-W-16878

SKU BEL9967
How will you purchase this wire?
4.780000 4.780000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 9967 22/3C Overall Braid Shield Communication and Instrumentation Cable, MIL-W-16878

Color Length (ft.) Price
White

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
White Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.184

  • Ampacity

    2.8

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

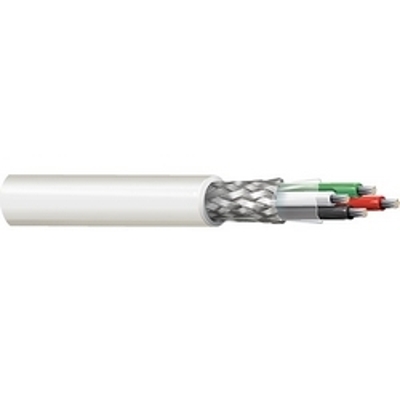

Belden 9967 - 22 AWG stranded (19x34) tinned copper conductors, conductors cabled, nylon skin over insulation, PVC insulation, tinned copper braid shield (90% coverage), PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

Belden 9967 - Specifications
Size AWG: 22 AWG
Conductors: 3
Stranding: 19x34
Conductor Material: Tinned Copper
Outside Diameter: .184 inches
Jacket Color: White
Jacket Material: PVC (Polyvinyl Chloride)
