    $7.28 /ft.

    In Stock

    Belden 9936 24 AWG 15 Conductor Low Capacitance Foil/Braid Shield Computer Cable for EIA RS-232/423 Applications

    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length

     Free Shipping on all orders over $1000

    Belden 9936 24/15C Low Capacitance Foil/Braid Shield Computer Cable for EIA RS-232/423 Applications

    SKU
    BEL9936-FT
    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description

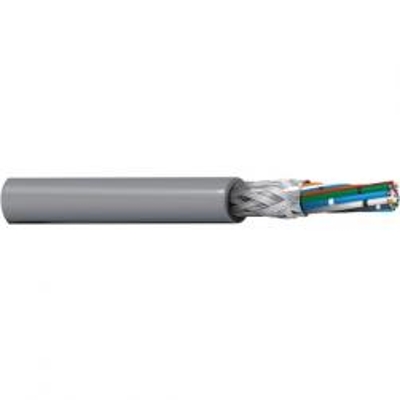

    Belden 9936 - 24 AWG stranded (7x32) TC conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), drain wire, PVC jacket.

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 9936 - Specifications
    Size: 24 AWG
    Conductors: 15
    Conductor Material: Tinned Copper
    Outside Diameter: .35 inches
    Jacket Color: Chrome
    Jacket Material: Semi-Rigid PVC (Polyvinyl Chloride)



    More Information
    StockedYes
    Wire Size24 AWG
    # of Conductors15 Conductors
    O.D. (Inches)0.345
    Ampacity 1.1
    ManufactureBelden
