Belden 9844 24 AWG 4 Pair Shielded Low Capacitance Computer Cable

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 9844 24 AWG 4 Pair Shielded Low Capacitance Computer Cable

SKU
BEL9844-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

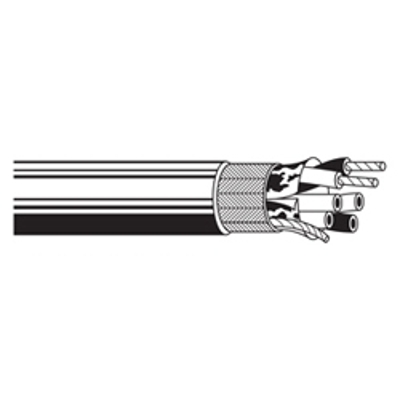

Belden 9844 - 24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, PVC jacket.

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 9844 Specifications
Conductor Size AWG:24AWG
Conductor Material:Tinned Copper
Outside Diameter:0.390 in.
Jacket Color:Chrome
Jacket Material:PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size24 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.39
Ampacity1.54
ManufactureBelden
