$13.28 /ft.

In Stock

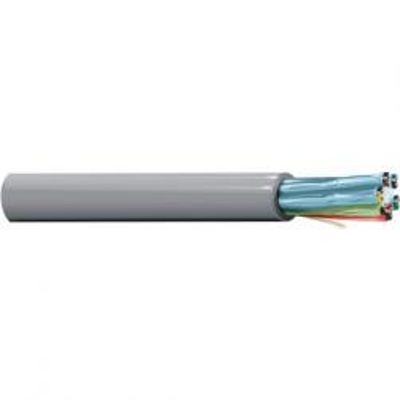

Belden 9774 18 AWG 6 Pair Multi-Conductor - Audio, Control and Instrumentation Cable

Min: 25 ft., Max: 500 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 9774 18 AWG 6 Pair Individually Shielded Audio, Control and Instrumentation Cable

SKU
BEL9774-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 9774 18 AWG stranded (19x30) TC conductors, polypropylene insulation, twisted pairs, individually shielded w/Beldfoil® (100% coverage), 20 AWG stranded TC drain wire, PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 9774 Specifications
Conductor Size AWG: 18AWG
Conductor Material: Tinned Copper
Stranding: 19x30
Outside Diameter: .560in
Jacket Color: Chrome
Jacket Material: PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
# of Conductors12 Conductors
# of Pairs6 Pair
O.D. (Inches)0.56
Ampacity 3.6
ManufactureBelden
ShieldedYes
Belden_5402FE (90.96 kB)
