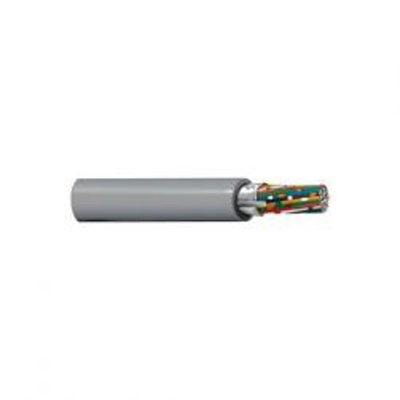

Belden 9545 24 AWG 40 Conductor Overall Foil Shield Computer Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 9545 - 24 AWG stranded (7x32) tinned copper conductors, conductors cabled, PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 9545 - Specifications | |
| Size: | 24 AWG |
| Conductors: | 40 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .406 inches |
| Jacket Color: | Chrome |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 24 AWG |
| # of Conductors | 40 Conductors |
| O.D. (Inches) | 0.406 |
| Ampacity | 1.75 |
| Manufacture | Belden |
