    Belden 9540 24/10C Overall Foil Shield Computer Cable

    In Stock

    SKU
    BEL9540-FT
    $3.52 /ft.
    Min: 30 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length
    Add to Compare

    Belden 9540 24 AWG 10 Conductor Overall Foil Shield Computer Cable

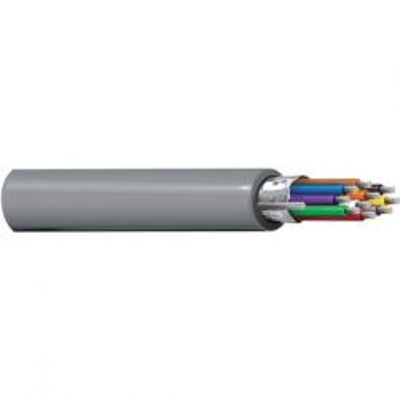

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 9540 - 24 AWG stranded (7x32) tinned copper conductors, conductors cabled, PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 9540 - Specifications
    Size: 24 AWG
    Conductors: 10
    Conductor Material: Tinned Copper
    Outside Diameter: .244 inches
    Jacket Color: Chrome
    Jacket Material: PVC (Polyvinyl Chloride)



    More Information
    StockedYes
    Wire Size24 AWG
    # of Conductors10 Conductors
    O.D. (Inches)0.244
    Ampacity 1.75
    ManufactureBelden
