Belden 9520 22 AWG 9-Pair 300V Power-Limited Tray Cable

SKU BEL9520
How will you purchase this wire?
7.340000 7.340000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 9520 22 AWG 9-Pair 300V Power-Limited Tray Cable

Color Length (ft.) Price
Chrome

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Chrome Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    18 Conductors

  • # of Pairs

    9 Pair

  • O.D. (Inches)

    0.482

  • Ampacity

    2.4

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

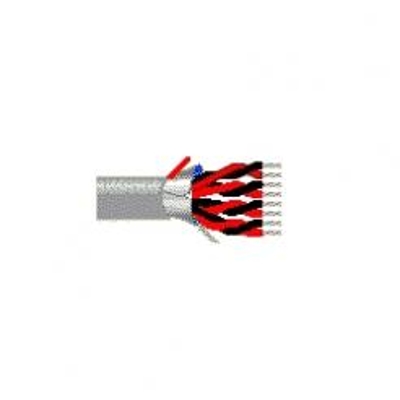

22 AWG pairs stranded (7x30) tinned copper conductors, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket, Direct Burial.

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 9520 Specifications
Conductor Size AWG: 22AWG
Conductor Material: Tinned Copper
Outside Diameter: .482 inch
Jacket Color: Chrome
Jacket Material: PVC (Polyvinyl Chloride)
Direct Burial: Yes
