Belden 9322 22 AWG 1-Pair Shielded Multi-Conductor Power Limited Tray Cable, PLTC/ITC 300V

SKU BEL9322

$

1.850000

1.850000

/ft
How will you purchase this wire?
1.850000 1.850000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 9322 22 AWG 1-Pair Shielded Multi-Conductor Power Limited Tray Cable, PLTC/ITC 300V

Color Length (ft.) Price
Chrome

Length (ft.)

$1.85
add Add a length
Grouped product items
Color Length (ft.)
Chrome Length 500 ft.
$925.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.201

  • Sunlight Resistant

    Yes

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

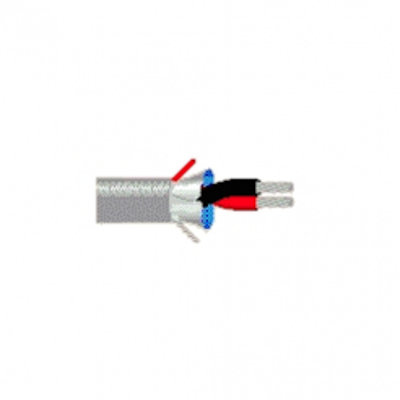

Belden 9322 - 22 AWG pairs stranded (7x30) tinned copper conductors, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 9322 Specifications
Conductor Size AWG: 22 AWG
Conductor Material: Tinned Copper
Outside Diameter: 0.201 in
Jacket Color: Chrome
Jacket Material: F-R PVC (Flame Retardant Polyvinyl Chloride)



See Less
