Belden 9252, 22AWG 50 Ohm M17/157-00001 Coax Cable

SKU BEL9252

$

1.990000

1.990000

/ft
How will you purchase this wire?
1.990000 1.990000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 9252, 22AWG 50 Ohm M17/157-00001 Coax Cable

Color Length (ft.) Price
Black

Length (ft.)

$1.99
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$995.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • O.D. (Inches)

    0.16

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

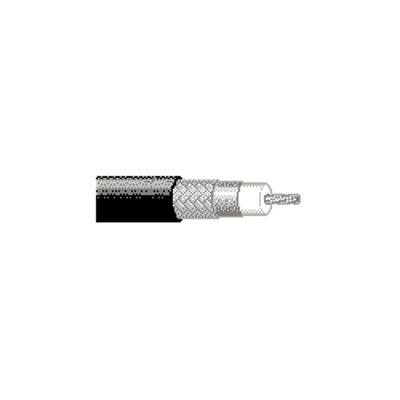

Belden 9252 - 22 AWG stranded (27x36) .030" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), non-contaminating PVC jacket. MIL-C-17 M17/157, MIL-DTL-17 M17/54

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 9252 - Specifications
Size:                                              22 AWG
Conductors: 1
Conductor Material:                      TC - Tinned Copper
Outside Diameter: .160 inches
Impedance: 50 OHM
Jacket Color: Black
Jacket Material: PVCNC - Polyvinyl Chloride Non-Contaminating
Shield Type: Tinned Copper Braid Shield (95% coverage)
