    Belden 9104P 20AWG, RG-59 CATVP, CMP Coax Cable

    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Add a length

     Free Shipping on all orders over $1000

    Belden 9104P, RG-59, 20AWG CATV Coax Cable

    SKU
    BEL9104P-FT

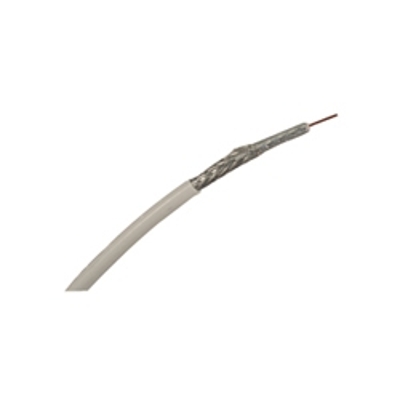

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 9104P - Series 59, 20 AWG  solid .032" bare copper-covered steel conductor, plenum, foam FEP insulation, Duobond® + Aluminum braid(s) shield (70% coverage), 300 V RMS, Sweep Tested 5 MHz to 1 GHz., Flamarrest® jacket.

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 9104P - Specifications
    Size:                                              20 AWG
    Conductors: 1
    Conductor Material:                      BCCS - Bare Copper Covered Steel
    Outside Diameter: .205 inches
    Impedance: 75 OHM
    Jacket Color: Natural
    Jacket Material: PVC (Polyvinyl Chloride)
    Shield Type: Foil + Aluminum Braid 70%
    More Information
    StockedYes
    Wire Size20 AWG
    O.D. (Inches)0.205
    ManufactureBelden
    ApplicationsCATV & Satelite Coax
