Belden 89842 24 AWG 2 Pair Overall/Braid Shield, Plenum, Low Capacitance and P.O.S. Computer Cable

SKU BEL89842
How will you purchase this wire?
18.600000 18.600000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 89842 24 AWG 2 Pair Overall/Braid Shield, Plenum, Low Capacitance and P.O.S. Computer Cable

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    4 Conductors

  • # of Pairs

    2 Pair

  • O.D. (Inches)

    0.305

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

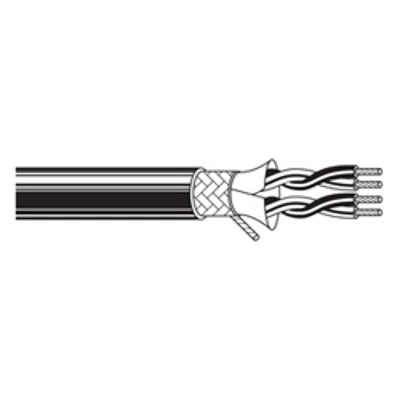

24 AWG stranded (7x32) tinned copper conductors, twisted pairs, foam FEP insulation, overall 100% Beldfoil® shield, 24 AWG stranded tinned copper drain wire, overall tinned copper braid shield (90% coverage), FEP jacket.



Belden 89842 Specifications
Conductor Size AWG: 24 AWG
Pairs: 2
Stranding: 7x32
Conductor Material: Tinned Copper
Outside Diameter: 0.305 in
Jacket Material: FEP - Fluorinated Ethylene Propylene
