Belden 89505 24 AWG 5 Pair Multi-Conductor - Computer Cable for EIA RS-232 Applications
Belden 89504 24 AWG 4 Pair Multi-Conductor - Computer Cable for EIA RS-232 Applications
SKU
BEL89504-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

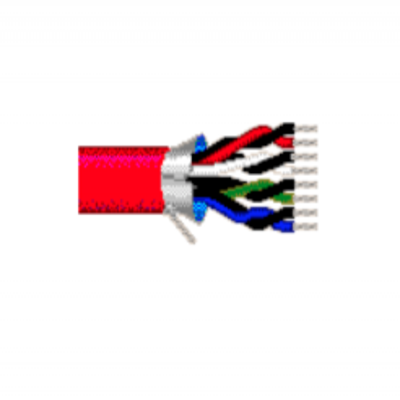

Belden 89504 - 24 AWG stranded (7x32) tinned copper conductors, plenum, FEP insulation, twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, FEP jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 89504 Specifications | |
| Conductor Size AWG: | 24 AWG |
| Pairs: | 4 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | 0.192 inches |
| Jacket Color: | Red |
| Jacket Material: | FEP - Fluorinated Ethylene Propylene |
| Stocked | Yes |
|---|---|
| Wire Size | 24 AWG |
| # of Conductors | 8 Conductors |
| # of Pairs | 4 Pair |
| O.D. (Inches) | 0.192 |
| Ampacity | 1.5 |
| Manufacture | Belden |
