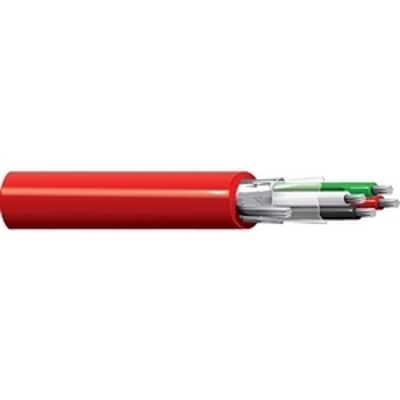

Belden 88770, 18/3C, High Temp, Plenum, Audio, Control, Instrumentation Cable, Shielded

SKU BEL88770

$

5.760000

5.760000

/ft
How will you purchase this wire?
5.760000 5.760000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 88770, 18/3C, High Temp, Plenum, Audio, Control, Instrumentation Cable, Shielded

Color Length (ft.) Price
Red

Length (ft.)

$5.76
add Add a length
Grouped product items
Color Length (ft.)
Red Length 500 ft.
$2,880.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.155

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 88770 - 18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, FEP jacket.


Suitable Applications:  Wet Locations, POS, Gas/Vapor Tight Jacket, Plenums, Risers, Oil and Gasoline Exposure

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 88770 - Specifications
Size: 18 AWG
Conductors: 3
Stranding: 19x30
Conductor Material: TC - Tinned Copper
Outside Diameter: .155 inches
Jacket Color: Red
Jacket Material: FEP - Fluorinated Ethylene Propylene
Weight: .030 lbs/ft
Operating Temperature Range: -70°C To +200°C
