$3.52 /ft.
Low Availability
Belden 8791 - 18/3C, Audio, Control, Instrumentation Cable, TC Spiral Wrapped Shield 80%
Belden 8791 - 18/3C, Audio, Control, Instrumentation Cable, TC Spiral Wrapped Shield 80%
SKU
BEL8791-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

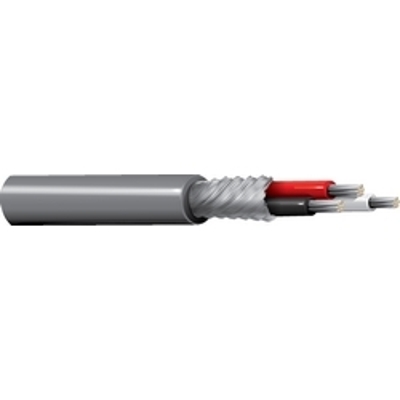

Belden 8791 - Overall spiral shield, 18 AWG stranded (7x26) tinned copper conductors, conductors cabled, PVC insulation, tinned copper spiral wrapped shield (80% shield coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 8791 - Specifications | |
| Size: | 18 AWG |
| Conductors: | 3 |
| Stranding: | 7x26 |
| Conductor Material: | TC - Tinned Copper |
| Outside Diameter: | .260 inches |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Weight: | .046 lbs/ft |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 3 Conductors |
| Manufacture | Belden |
