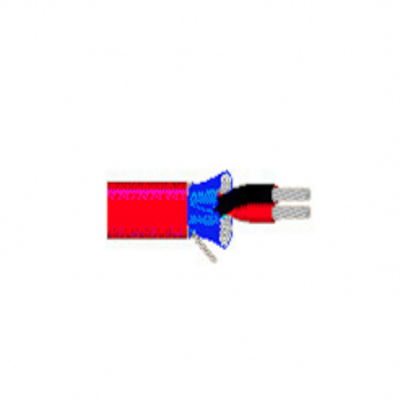

Belden 87761 22 AWG 1 Pair Plenum Rated Multi-Conductor Foil Shield 300V Instrumentation Cable

SKU BEL87761

$

3.080000

3.080000

/ft
How will you purchase this wire?
3.080000 3.080000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 87761 22 AWG 1 Pair Plenum Rated Multi-Conductor Foil Shield 300V Instrumentation Cable

Color Length (ft.) Price
Red

Length (ft.)

$3.08
add Add a length
Grouped product items
Color Length (ft.)
Red Length 500 ft.
$1,540.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.116

  • Ampacity

    2.8

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 87761 - 22 AWG stranded (7x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, fluorocopolymer jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22AWG
Conductor Material: Tinned Copper
Outside Diameter: 0.116 in
Jacket Color: Red
Jacket Material: PVDF - Fluorocopolymer

*Data provided on this page is subject to change based on different manufacturers variances.
