18 AWG stranded (41x34) tinned copper conductors, conductors cabled, polypropylene insulation, overall Beldfoil® shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

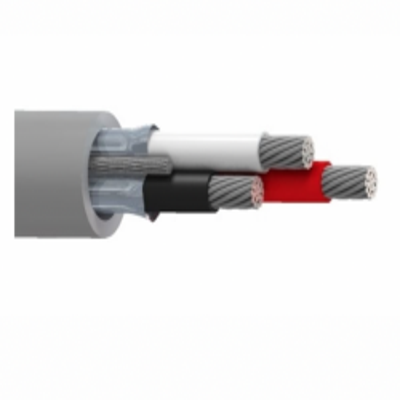

Belden 8770MN 18 AWG 3 Conductor Shielded SpaceMaker Audio, Control and Instrumentation Cable, 300V
SKU
BEL8770MN-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 8770MN - SpaceMaker Series - 18 AWG stranded (41x34) tinned copper conductors, conductors cabled, polypropylene insulation, overall Beldfoil® shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 8770MN - Specifications | |
| Size: | 18AWG |
| Conductors: | 3 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .181 inches |
| Jacket Color: | Gray |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 18 AWG |
| # of Conductors | 3 Conductors |
| O.D. (Inches) | 0.181 |
| Manufacture | Belden |
