    Belden 8762MN 20 AWG 1 Pair Shielded SpaceMaker Audio, Control and Instrumentation Cable, 300V

    Out Of Stock

    SKU
    BEL8762MN-FT
    Contact us for pricing
    Min: 50 ft., Max: 300 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length
    Add to Compare

    20 AWG stranded (26x34) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.

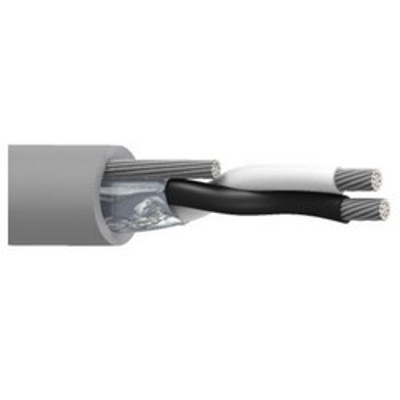

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 8762MN - SpaceMaker Series - 20 AWG stranded (26x34) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.

    Spec Sheet

    Belden 8770 Spec SheetView Spec Sheet for Complete Details

    Belden 8762MN - Specifications
    Size: 20AWG
    Pairs: 1
    Stranding: 26x34
    Conductor Material: Tinned Copper
    Outside Diameter: .149 inches
    Jacket Color: Gray
    Jacket Material: PVC (Polyvinyl Chloride)



    More Information
    StockedYes
    Wire Size20 AWG
    # of Conductors2 Conductors
    # of Pairs1 Pair
    O.D. (Inches)0.149
    ManufactureBelden
