    22 AWG stranded (19x34) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.

    Min: 30 ft., Max: 485 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length

     Free Shipping on all orders over $1000

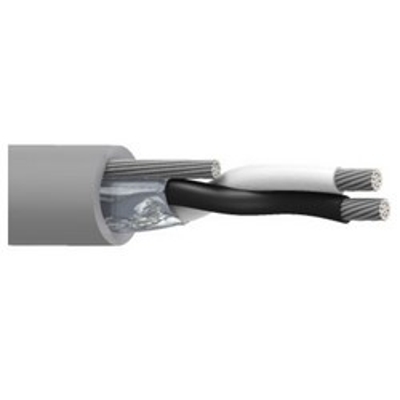

    Belden 8761MN 22 AWG 1 Pair Shielded SpaceMaker Audio, Control and Instrumentation Cable, 300V

    SKU
    BEL8761MN-FT
    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 8761MN - SpaceMaker Series - 22 AWG stranded (19x34) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.

    Spec Sheet

    Belden 8770 Spec SheetView Spec Sheet for Complete Details

    Belden 8761MN - Specifications
    Size:22AWG
    Pairs:1
    Stranding:19x34
    Conductor Material:Tinned Copper
    Outside Diameter:.135 inches
    Jacket Color:Gray
    Jacket Material:PVC (Polyvinyl Chloride)



    More Information
    Wire Size22 AWG
    # of Conductors2 Conductors
    # of Pairs1 Pair
    O.D. (Inches)0.135
    Ampacity2.9
    ManufactureBelden
