Belden 8760MN 18 AWG 1 Pair Shielded SpaceMaker Audio, Control and Instrumentation Cable, 300V



1000ft Spools Only from Factory



Material Due Date: Nov 2023

Min: 1000 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 8760MN 18 AWG 1 Pair Shielded SpaceMaker Audio, Control and Instrumentation Cable, 300V

SKU
BEL8760MN-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

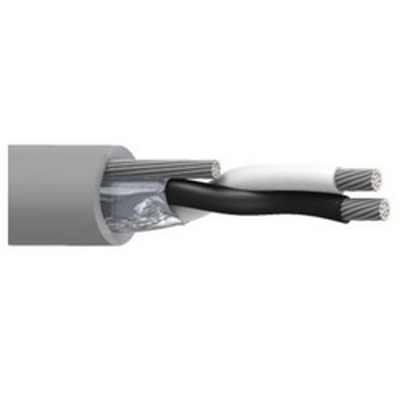

Belden 8760MN - SpaceMaker Series - 18 AWG stranded (41x34) tinned copper conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

Spec Sheet

Belden 8770 Spec SheetView Spec Sheet for Complete Details

Belden 8760MN - Specifications
Size:18AWG
Pairs:1
Stranded:41x34
Conductor Material:Tinned Copper
Outside Diameter:.169 inches
Jacket Color:Gray
Jacket Material:PVC (Polyvinyl Chloride)



More Information
Wire Size18 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.169
ManufactureBelden
