$3.57 /ft.
In Stock

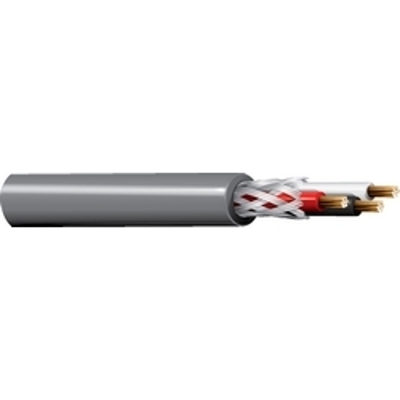

Belden 8735 - 22/3C, Audio, Control and Instrumentation Cable, Shielded
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 8735 - 22 AWG stranded (7x30) tinned copper conductors, conductors cabled, PVC insulation, tinned copper braid shield (70% shield coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 8735 - Specifications | |
| Size: | 22 AWG |
| Conductor: | 3 |
| Stranding: | 7x30 |
| Conductor Material: | TC - Tinned Copper |
| Outside Diameter: | .202 inches |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Weight: | .027 lbs/ft |
| Stocked | Yes |
|---|---|
| # of Conductors | 3 Conductors |
| Manufacture | Belden |
