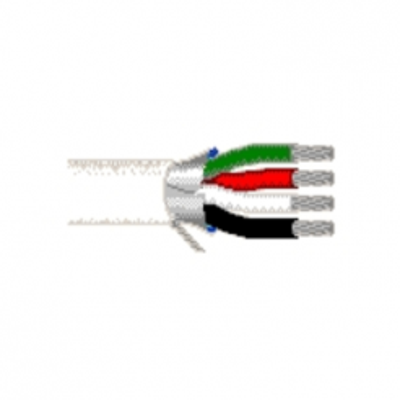

Belden 8729 22 AWG 4 Conductor Foil Shield, Tinned Copper, 300V
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 8729 - 22 AWG stranded (7x30) tinned copper conductors, conductors cabled, polyethylene insulation, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 8729 - Specifications | |
| Size: | 22 AWG |
| Conductors: | 4 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .257 inches |
| Jacket Color: | Chrome |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 22 AWG |
| # of Conductors | 4 Conductors |
| O.D. (Inches) | 0.257 |
| Ampacity | 2.3 |
| Manufacture | Belden |
