Belden 85231 - 16/2C, High Temperature, Control and Instrumentation Cable, Shielded

SKU
BEL85231-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

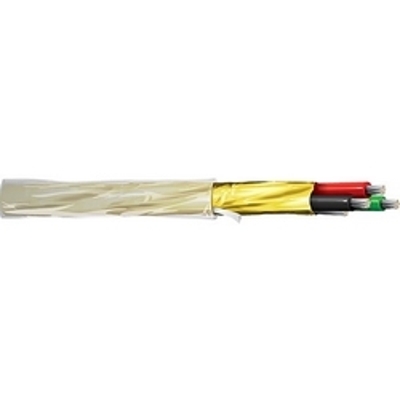

Belden 85231 - 16 AWG stranded (19x29) TC conductors, conductors cabled, Tefzel® insulation, drain wire, overall Beldfoil® Aluminum-Kapton® Shield (100% coverage), Tefzel® jacket.

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 85231 - Specifications
Size:16 AWG
Conductors:2
Stranding:19x29
Conductor Material:Tinned Copper
Outside Diameter:.210 inches
Jacket Color:Clear
Jacket Material:ETFE - Ethylene Tetrafluoroethylene
Weight:.038 lbs/ft



More Information
Wire Size30 AWG
# of Conductors2 Conductors
O.D. (Inches)0.210
ManufactureBelden
