Belden 8441 22 AWG 1 Pair Multi-Conductor Audio, Control and Instrumentation Cable, 300V

SKU BEL8441

$

2.100000

2.100000

/ft
How will you purchase this wire?
2.100000 2.100000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 8441 22 AWG 1 Pair Multi-Conductor Audio, Control and Instrumentation Cable, 300V

Color Length (ft.) Price
Chrome

Length (ft.)

$2.10
add Add a length
Grouped product items
Color Length (ft.)
Chrome Length 500 ft.
$1,050.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.194

  • Ampacity

    2.9

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

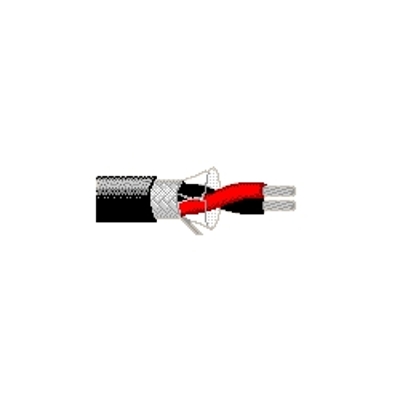

Belden 8441 - Overall braid, 22 AWG stranded (7x30) TC conductors, PVC insulation, twisted pair, polyester tape + TC braid shield (85% coverage), stranded TC drain wire, PVC jacket.

Spec Sheet

Belden 8770 Spec SheetView Spec Sheet for Complete Details

Belden 8441 - Specifications
Conductor Size AWG: 22AWG
Pairs: 1
Conductor Material: Tinned Copper
Outside Diameter: .194 inches
Jacket Color: Chrome
Jacket Material: PVC (Polyvinyl Chloride)



See Less
