Learn everything you want to know about this product to make an informed purchaseGeneral Description

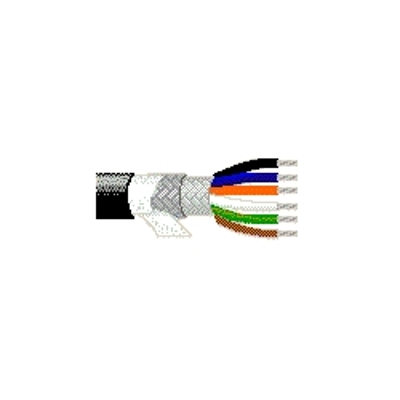

Belden 8427 - 20 AWG stranded (26x34) high-conductivity TC conductors, cabled, rubber insulation, cotton wrap, rayon braid, TC braid shield (85% coverage), EPDM rubber jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 8427 Specifications | |
| Conductor Size AWG: | 20 AWG |
| Conductors: | 7 |
| Stranding: | 26x34 |
| Conductor Material: | High Conductivity TC - Tinned Copper |
| Outside Diameter: | 0.355 in. |
| Jacket Color: | Black |
| Jacket Material: | EPDM - Ethylene Propylene Diene Monomer Rubber |
| Voltage: | 600V |
| Weight: | 0.096 lbs/ft |
| Stocked | Yes |
|---|---|
| # of Conductors | 7 Conductors |
| Manufacture | Belden |
