Belden 83709 16 AWG 9 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable

SKU
BEL83709-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

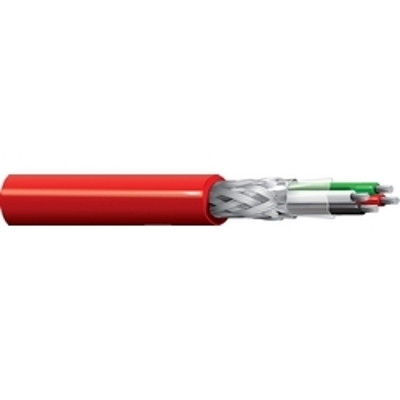

Belden 83709, 16 AWG stranded (19x29) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Belden 83709 - Specifications
Size AWG:16 AWG
Conductors:9
Conductor Material:Tinned Copper
Outside Diameter:.307 inches
Jacket Color:Red
Jacket Material:                 FEP - Flourinated Ethylene Propylene



More Information
Wire Size16 AWG
# of Conductors9 Conductors
O.D. (Inches)0.307
Ampacity4.5
ManufactureBelden
