Free shipping on orders over $1000 View Details
$16.87 /ft.

In Stock

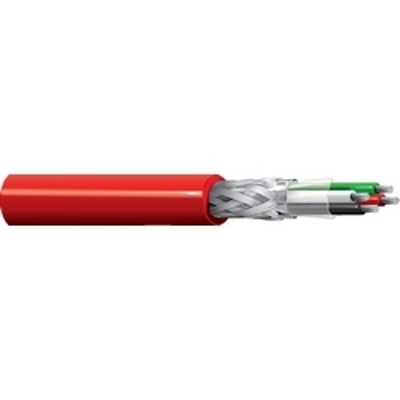

Belden 83704 16 AWG 4 Conductor, Overall Foil/Braid Shield, FEP Jacket, Audio, Control and Instrumentation Cable

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 83704 16 AWG 4 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable

SKU
BEL83704-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 83704, 16 AWG stranded (19x29) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Belden 83704 - Specifications
Size AWG:16 AWG
Conductors:4
Conductor Material:Tinned Copper
Outside Diameter:.223 inches
Jacket Color:Red
Jacket Material:                 FEP - Flourinated Ethylene Propylene



More Information
Wire Size16 AWG
# of Conductors4 Conductors
O.D. (Inches)0.223
Ampacity5.1
ManufactureBelden
