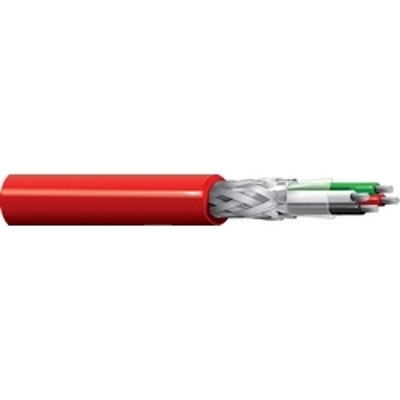

Belden 83702 16 AWG 2 Conductor, Overall Foil/Braid Shield, FEP Jacket, Audio, Control and Instrumentation Cable
Belden 83702 16 AWG 2 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable
SKU
BEL83702-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 83702, 16 AWG stranded (19x29) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 83702 - Specifications | |
| Size AWG: | 16 AWG |
| Conductors: | 2 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .196 inches |
| Jacket Color: | Red |
| Jacket Material: | FEP - Flourinated Ethylene Propylene |
| Stocked | Yes |
|---|---|
| Wire Size | 16 AWG |
| # of Conductors | 2 Conductors |
| O.D. (Inches) | 0.197 x 0.298 |
| Ampacity | 6.4 |
| Manufacture | Belden |
