$17.13 /ft.
Low Availability

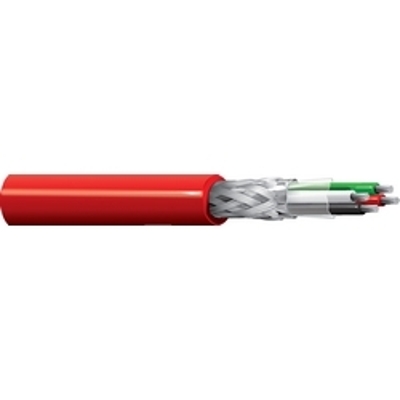

Belden 83606 20 AWG 6 Conductor, Overall Foil/Braid Shield, FEP Jacket, Audio, Control and Instrumentation Cable
Belden 83606 20 AWG 6 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable
SKU
BEL83606-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 83606, 20 AWG stranded (7x28) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 83606 - Specifications | |
| Size AWG: | 20 AWG |
| Conductors: | 6 |
| Stranding: | 7x28 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .207 inches |
| Jacket Color: | Red |
| Jacket Material: | FEP - Flourinated Ethylene Propylene |
| Stocked | Yes |
|---|---|
| Wire Size | 20 AWG |
| # of Conductors | 6 Conductors |
| O.D. (Inches) | 0.207 |
| Ampacity | 2.7 |
| Manufacture | Belden |
