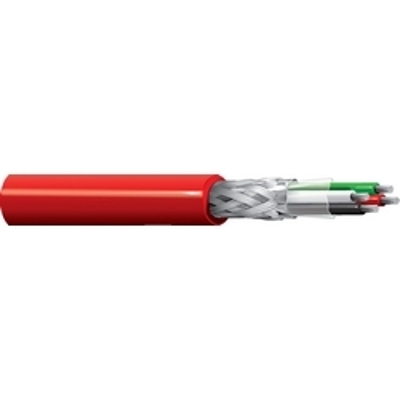

Belden 83569 22 AWG 19 Conductor, Overall Foil/Braid Shield, FEP Jacket, Audio, Control and Instrumentation Cable

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 83569 22 AWG 19 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable

SKU
BEL83569-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 83569, 22 AWG stranded (7x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Belden 83569 - Specifications
Size AWG:22 AWG
Conductors:19
Stranding:7x30
Conductor Material:Tinned Copper
Outside Diameter:.269 inches
Jacket Color:Red
Jacket Material:                 FEP - Flourinated Ethylene Propylene



More Information
Wire Size22 AWG
# of Conductors19 Conductors
O.D. (Inches)0.269
Ampacity1.4
ManufactureBelden
