Belden 83554 22 AWG 4 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable

SKU BEL83554

$

11.790000

11.790000

/ft
How will you purchase this wire?
11.790000 11.790000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 83554 22 AWG 4 Conductor Overall Foil/Braid Shield FEP Jacket Audio, Control and Instrumentation Cable

Color Length (ft.) Price
Red

Length (ft.)

$11.79
add Add a length
Grouped product items
Color Length (ft.)
Red Length 500 ft.
$5,895.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    4 Conductors

  • O.D. (Inches)

    0.159

  • Ampacity

    2.2

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

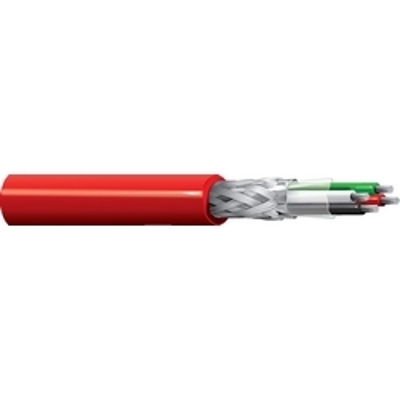

Belden 83554, 22 AWG stranded (7x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Belden 83554 - Specifications
Size AWG: 22 AWG
Conductors: 4
Stranding: 7x30
Conductor Material: Tinned Copper
Outside Diameter: .159 inches
Jacket Color: Red
Jacket Material:                  FEP - Flourinated Ethylene Propylene
