Belden 83321E 18 AWG, 2 Conductors Cabled, Teflon Insulation, Teflon Jacket, Mil-W-16878/4 (Type E)
Belden 83321E 18 AWG, 2 Conductors Cabled, Teflon Insulation, Teflon Jacket, Mil-W-16878/4 (Type E), 200
SKU
BEL83321E-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

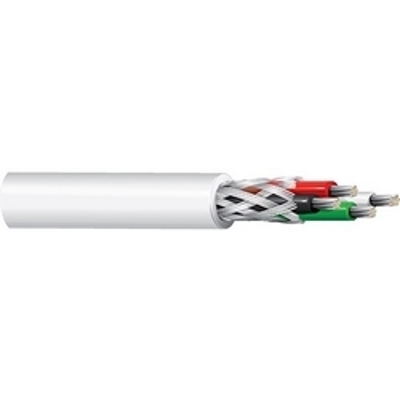

Belden 83321E - 18 AWG stranded (19x30) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 83321E Specifications | |
| Conductor Size AWG: | 18AWG |
| Conductor Stranding: | 19/30 |
| Conductor Material: | SPC - Silver Plated Copper |
| Outside Diameter: | 0.179 in |
| Insulation Material: | TFE - Tetrafluoroethylene |
| Jacket Material: | TFE - Tetrafluoroethylene |
| Jacket Color: | White |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 2 Conductors |
| O.D. (Inches) | 0.179 |
| Manufacture | Belden |
