Belden 83284, 50 Ohm, M17/113-RG316, White Coax Cable
$4.56 /ft.
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

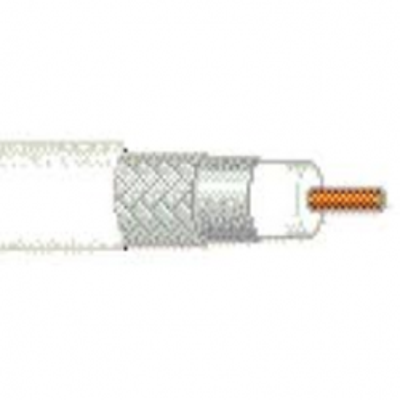

Belden 83284 -26 AWG stranded (7x34) .020" silver-plated copper-covered steel conductor, TFE Teflon® insulation, silver-plated copper braid shield (95% coverage), FEP jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 84142 - Specifications | |
| Size: | 26 AWG |
| Conductors: | 1 |
| Conductor Material: | SPCCS - Silver-Plated Copper-Covered Steel |
| Outside Diameter: | .098 inches |
| Impedance: | 50 OHM |
| Jacket Color: | White |
| Jacket Material: | FEP - Fluorinated Ethylene Propylene |
| Shield Type: | Silver Coated Copper Braid 95% |
| Stocked | Yes |
|---|---|
| Wire Size | 26 AWG |
| O.D. (Inches) | 0.098 |
| Manufacture | Belden |
