$8.46 /ft.
In Stock
Belden 82842 24 AWG 2 Pair Overall/Braid Shield, Plenum, Low Capacitance Computer and P.O.S. Computer Cable
Belden 82842 24 AWG 2 Pair Overall/Braid Shield, Plenum, Low Capacitance Computer and P.O.S. Computer Cable
SKU
BEL82842-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

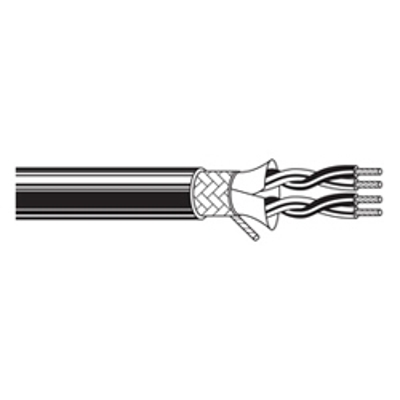

Belden 82842 - Low cap 24 AWG stranded (7x32) TC conductors, plenum, foam FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, Flamarrest® jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 82842 Specifications | |
| Conductor Size AWG: | 24 AWG |
| Pairs: | 2 |
| Stranding: | 7x32 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | 0.273 in |
| Jacket Color: | Natural |
| Jacket Material: | LS PVC (Low Smoke Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 4 Conductors |
| # of Pairs | 2 Pair |
| O.D. (Inches) | 0.273 |
| Manufacture | Belden |
