Belden 82777 22 AWG 3 Pair Multi-Conductor CMP Plenum Rated Cable

SKU BEL82777

$

5.640000

5.640000

/ft
How will you purchase this wire?
5.640000 5.640000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 82777 22 AWG 3 Pair Multi-Conductor CMP Plenum Rated Cable

Color Length (ft.) Price
Natural

Length (ft.)

$5.64
add Add a length
Grouped product items
Color Length (ft.)
Natural Length 500 ft.
$2,820.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    6 Conductors

  • # of Pairs

    3 Pair

  • O.D. (Inches)

    0.237

  • Ampacity

    1.96

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

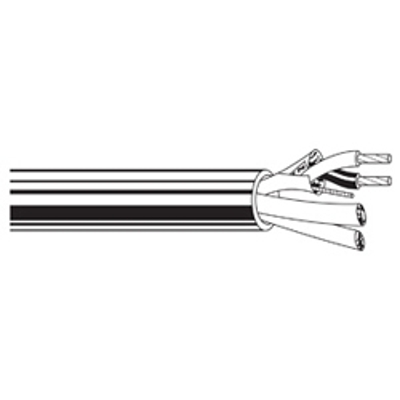

Belden 82777 22 AWG stranded (7x30) TC conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded TC drain wire.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Specifications
Conductor Size: 22AWG
Conductor Material: Tinned Copper
Outside Diameter: .237 inches
Jacket Color: Natural
Jacket Material: Flamarrest®  - Low Smoke PVC
